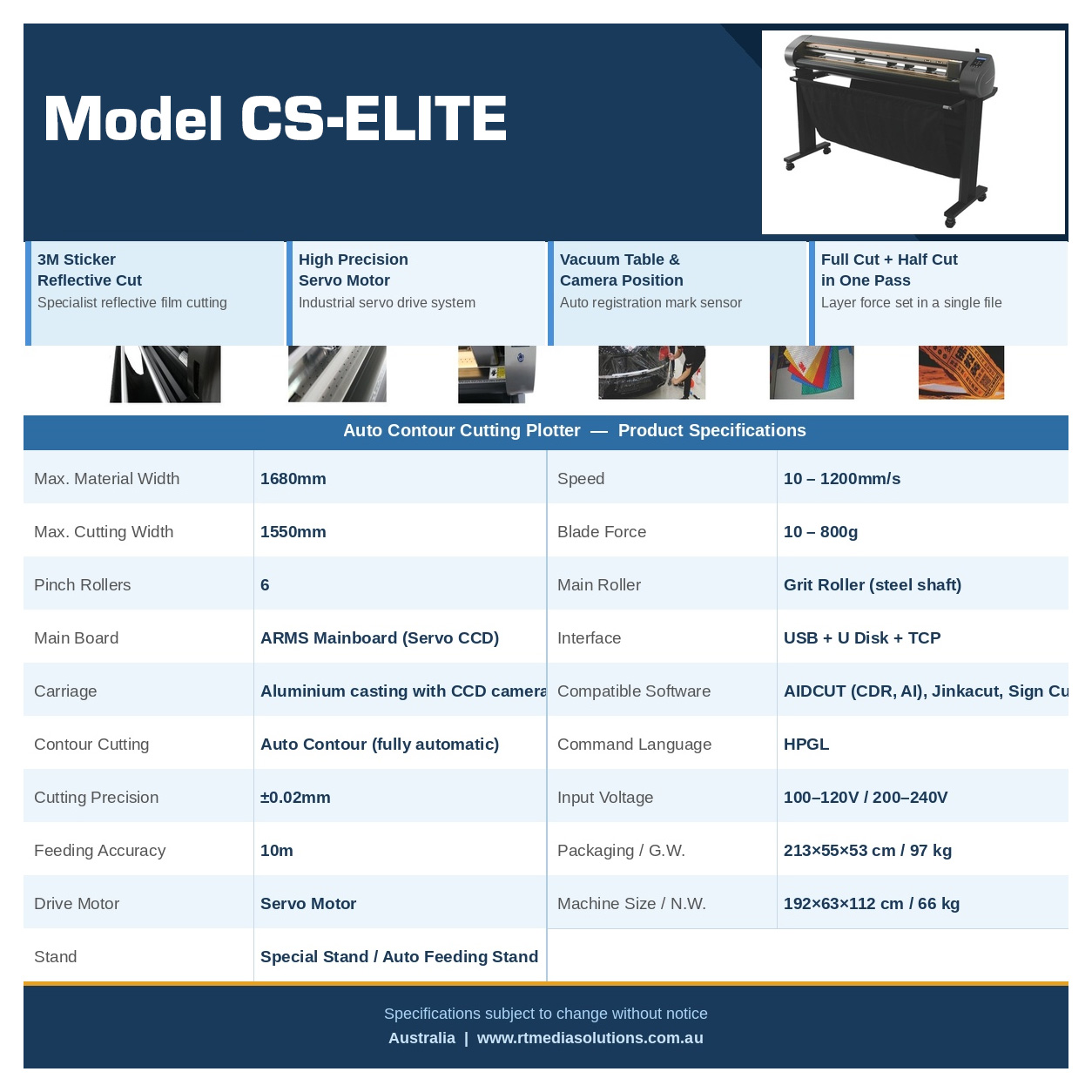

Specifications:
Max Material Width: 1680 mm
Max Cutting Width: 1550 mm
Pinch Rollers: 6
Main Board: ARMS CCD Mainboard
Carriage: Aluminum casting carriage with CCD camera
Contour Cutting Type: Fully automatic contour cutting
Cutting Precision: ±0.02 mm
Feeding Accuracy: 10 m
Drive Motor: Servo motor
Stand: Special stand / Auto feeding stand
Speed: 10–1200 mm/s
Cutting Force: 10–800 g
Roller: Grit roller
Interface: USB + U-Disk + TCP
Supported Software: AIDCUT (CDR, AI), Jinkacut (Signmaster), SignCut
Command Language: HPGL
Input Voltage: 100–120V / 200–240V
Packing Size / Gross Weight: 213 × 55 × 53 cm / 97 kg
Machine Size / Net Weight: 192 × 63 × 112 cm / 66 kg
Key Features:
• Designed for 3M reflective film and sticker contour cutting
• High-precision servo motor
• CCD camera positioning system
• Vacuum table
• Half-cut and full-cut force settings in the same job
